Products

Wideband Systems (WSI) has been providing advanced signal recording products since 1998.

WSI manufactures the industry-leading Digital Recording System (DRS) product family. Optimized for the Telemetry and SIGINT markets, these recorders provide exceptionable bandwidth and scalability while maintaining strict compliance with the IRIG-106 Chapter 10 standard.

The following summarizes some of the capabilities and salient features of our Wideband Recorders, DRS8000 Series & DRS9300X products:

STIG and SCAP Compliance:
WSI supports the user in maintaining compliance. Applicable Security Technical Implementation Guides (STIG) are implemented out of the box with site customizations supported. Any user-level account can control the recorder.

User Control:
WSI provides several methods of unit control. They are: front panel touch screen, attached monitor-keyboard-mouse¸ Windows Remote Desktop, and client application over a socket interface.

Field Installable Interface Boards:
When a user needs to add additional channels or channel types, this can be done easily by the user with no factory support required.

Power Reset:
Even when power is interrupted during a record, the system retains all data and setup information so that upon power being re-applied, the user just presses RECORD to continue.

Infinite Recording:
The user has the ability to record to either RAID, or to record to both RAIDs in an sequential format

AES Encrypted Data Sets:
The internal RAID media can be encrypted for security, locked for protection, “secure erased” to protect your program’s Information Assurance, and be password protected.

Secure Operating System:
All recorders provide a user interface hosted on Embedded Windows-10 Secure Host Baseline (SHB). Support is available to provide quarterly STIG updates in order to stay aligned with evolving security requirements.

Realtime Performance:
Realtime record and playback data is processed by high performance FPGAs and embedded LINUX. These data paths do not involve the Windows-10 CPU.

Automatic Time Selection:
The user does not need to know which IRIG signal type is present … Wideband provides automatic detection/decoding of IRIG-A, IRIG-B, or IRIG-G.

External Timing:
To support a range of external timing requirements, the DRS can accept an external 1 PPS signal and an external 10 MHz signal in addition to the standard IRIG-A, IRIG-B, or IRIG-G timing signals and optional GPS.

Internal Disk RAID:
All the WSI products are provided with dual-banked, internal disk arrays supporting mirrored, striped, or sequential formats.

File Naming:
The DRS software provides the flexibility to either use the default data and time format for CH10 files, or to change the name to a more “user friendly” format.

Data Recording:
The DRS recorder family will record or reproduce either to the internal RAID or to external media.

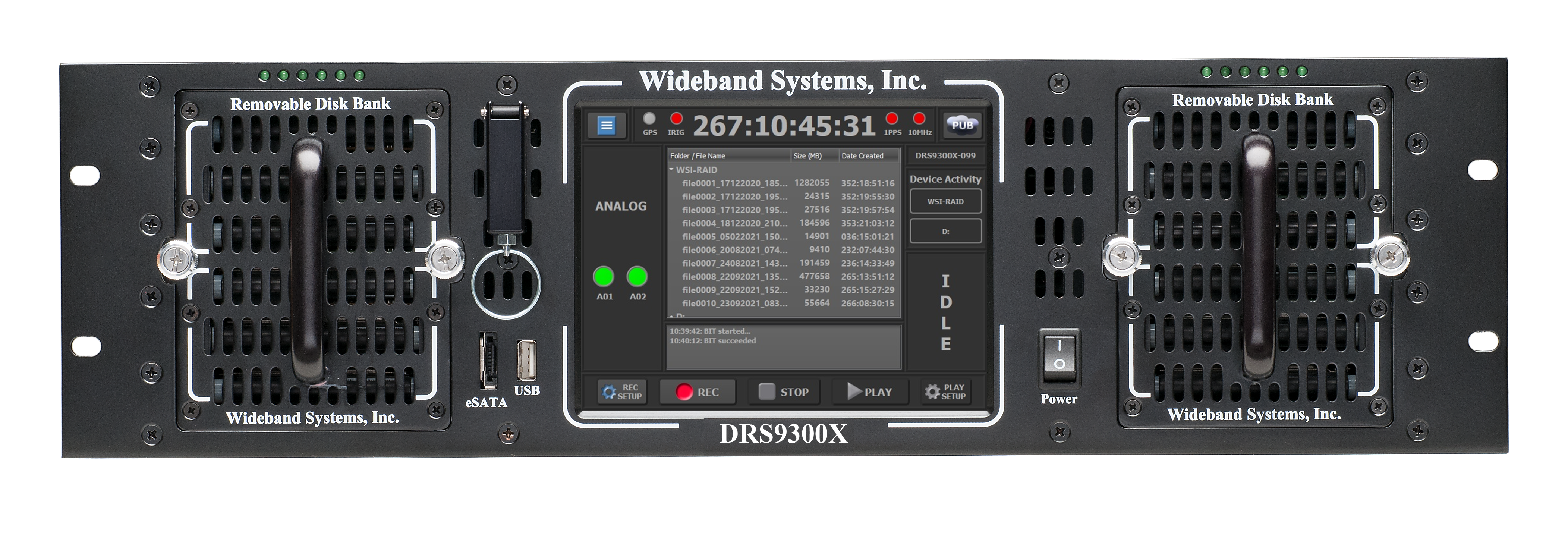

Wideband Model DRS9300X Recorder
8500X Screen Playback
4A4D PCB Interface Board
Wideband Model DRS800P Recorder
Wideband Model DRS8200X Recorder
Wideband Model DRS8500X Recorder
Wideband Model DRS9300X Recorder

Chapter-10 Version Support:
The WSI recorders support a variety of IRIG-106 Chapter 10 versions for Record and Playback.

Recording Catalog:
Because Chapter-10 recorders can have many files on them, WSI provides the users a full catalog system to allow the user to quickly review, load, export, or play any Chapter-10 file on the system.

Triggered Operations:
Because many missions are pre-set to start at specific times, the DRS software provides the ability to set a specific IRIG time for a record … or a time for a session playback for mission simulation.

Full IRIG Time Code Support:
WSI offers the recording and reproduction of serial IRIG time, inclusive of YEAR, BCD, and SBS timefields.

Faster/Slower Playback:
When file playback is required to be done quickly, WSI offers the ability to playback 2X, 4X, 8X or 16X the original rate. Playback by 1/2X, 1/4X, 1/8, or 1/16X speeds are also included.

Bit Rate Agnostic:
No matter the PCM bit rate programmed, the DRS family is guaranteed to be able to capture your PCM signal, all the way to 40 Mbps … and play it back with no regard to the “operator-entered” PCM rate.

PCM Simulator:
Each PCM card has it’s own data simulator for more complete testing.

Channel Mapping:
WSI provides full flexibility to map the channel reproduction to ONE or MANY outputs.

Session Configuration:
Even when power OFF is planned or un-planned, any changes are saved and restored upon power-up.

Loop Playback:
The DRS software provides the user selectable fields so that start time and stop times of a file can be played back continuously.

Self Test:
BIT (Built-in Test) is performed automatically during every “power on” cycle or upon user request. BIT tests all data multiplexing, formatting, and memory locations so that dependable operation is always assured.

Batch Operation:
DRS software allows the user to set up “batch” operations for EXPORTING data files for “after hours” operations.

User Logs:
All critical mission commands and results are logged with time stamps for system accountability.

Monitor Mode:
DRS provides the user real-time data monitoring of all input channels, as well as data multiplexing and media utilization.
